1. Load - The operator hangs the printed circuit boards on a stainless steel cross bar which is supported by a roller chain conveyor.
2. Dip Coat - The conveyor lowers the products into the stainless steel dip tank where both sides are coated simultaneously.
3. Withdraw & Flow-out - The conveyor then withdraws the boards at a controlled, constant rate that can be adjusted to achieve the desired coating thickness.
4. Dry - The coated pieces are carried upward to the drying section, where both sides are dried at the same time.
5. Unload - The finished pieces are returned to the point of entry for removal.

The dip coater system is supplied with pressurized, filtered air to maintain clean manufacturing conditions. The exhaust system is designed to remove heated vapors and air, as well as heavier-than-air solvent vapors from the bottom of the machine. The conveyor drive is speed controlled from 2 to 20 inches per minute.

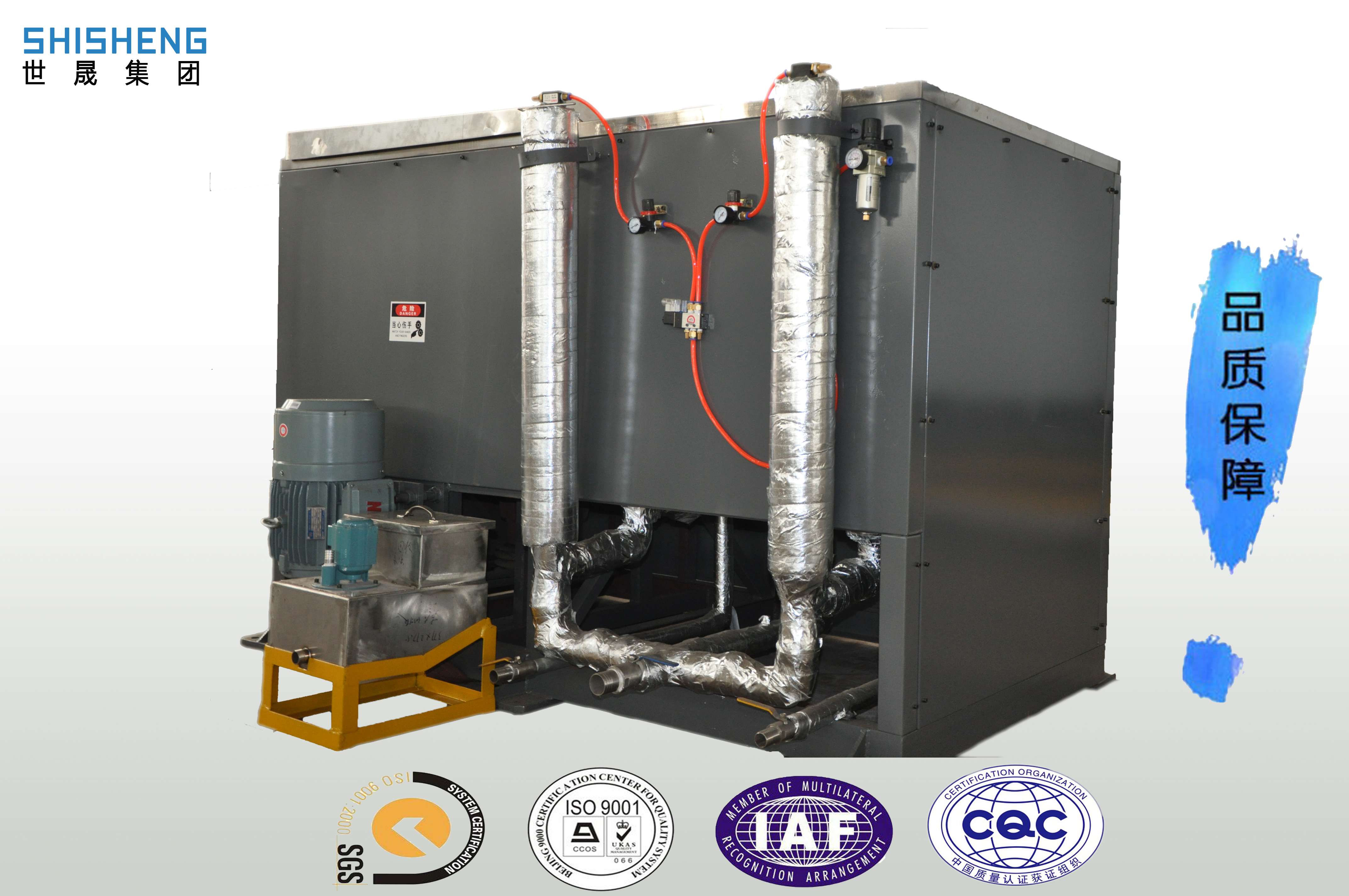

DCM400 Suitable for any kinds of zinc flake paints and related top coat, seal, teflon coating.

Equipment main body:
1. Weighting loading system.

2. Dip-spin coating system.

3. Conveyor distributor.

4. Operation control system.

Features:

Basket planet type configuration, every time convert direction can realize the workpiece location swap, the qualified rate of blind hole workpieces is very high, full automatic design, efficient and energy saving.

Main parameter:
