Changzhou Shisheng Machineries Co.,Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | SHISHENG |
| Model Number : | SCM400 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5 Set per Month |
| Delivery Time : | Three months after receipt of advance payment |

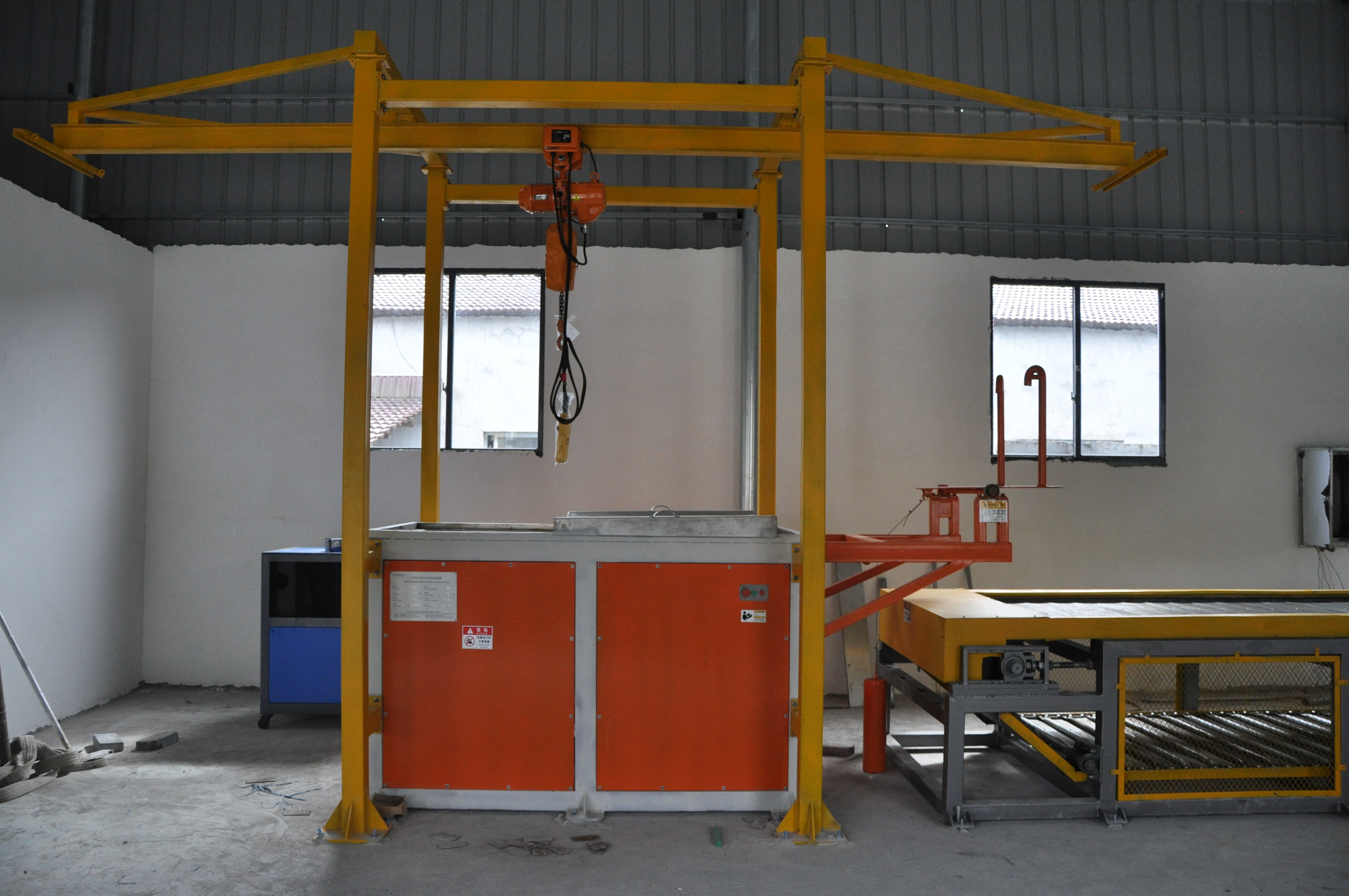

Easy Operation Automatic Coating Machine All In One Wide Application
Applications
Dip coating refers to the immersing of a substrate into a tank containing coating material, removing the piece from the tank, and allowing it to drain.
The process is carried out with well-defined speed under controlled temperature and atmospheric conditions. The coating thickness is mainly defined by the withdrawal speed, by the solid content and the viscosity of the liquid. Owing to its simplicity, this method lends itself to automation.
DCM400 Suitable for any kinds of zinc flake paints and related top coat, seal, teflon coating.
Equipment main body:
1. Weighting loading system.
2. Dip-spin coating system.
3. Conveyor distributor.
4. Operation control system.
Features:
Basket planet type configuration, every time convert direction can realize the workpiece location swap, the qualified rate of blind hole workpieces is very high, full automatic design, efficient and energy saving.
Main parameter:
| Max spinning speed | 380 | r/min |
| Max load of basket | 30 | kg |
| Shortest production rate | 180 | s |
| Max capacity | 1800 | kg/h |
| Suitable workpiece weight | ≤600 | g |
| Suitable workpiece length | ≤15 | cm |
|
|
