Changzhou Shisheng Machineries Co.,Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | SHESHENG |
| Model Number : | SL1200 |
| Certification : | ISO9001 CE |
| Price : | 1 set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 6 Sets per Month |
| Delivery Time : | Two months after receipt of advance payment |

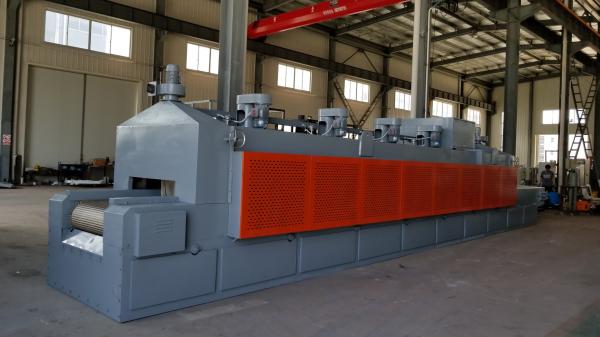

Uniform Temperature Industrial Paint Curing Oven Accurate Electric Heating
Internationally recognised as the leading manufacturer in many industries
Unique high efficiency Thermal design minimises energy usage
Superior production results due to very uniform temperature distribution
Unique High Volume Low Pressure hot air circulation system
Powerful 'Twin Fan' air circulation on all larger conveyor ovens
Airflow Ovens are specified by the worlds leading companies
ATEX, Rolls Royce RPS 953 Aerospace ovens regularly supplied
Galvanised steel, Alu-dip or Stainless Steel construction
Designed for rapid heating of a wide variety of products and assemblies
Heating Composites, Ceramics, PCB’s, Pharmaceuticals, Metals, Plastics & more
Pre-assembled, Test Run, Data Logged and certified before despatch
Description
1. Technological process:
Loading | Leveling | Drying(Pre-heating) | Curing | Cooling | unloading |
2. Main structure:
Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.
3. Main parameter : (Based on M10)
Outside dimension | 24×2.2×4.5 (L*W*H) | m |
Inside dimension | 14×1.2×0.3 (L*W*H) | m |
Max curing temperature | 400 | ℃ |
Temperature uniformity control | ±5 | ℃ |
Max load capacity/mesh-belt | 220 | kg/m² |
Avg.gas consumption | 25 | m³/h |
Max output | 9000 | kg/h |
Belt convey speed | 0.23~0.62 | m/min |
|
|
