Changzhou Shisheng Machineries Co.,Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | SHESHENG |
| Model Number : | SL1800 |
| Certification : | ISO9001 CE |
| Price : | 1 set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 6 Sets per Month |
| Delivery Time : | Two months after receipt of advance payment |

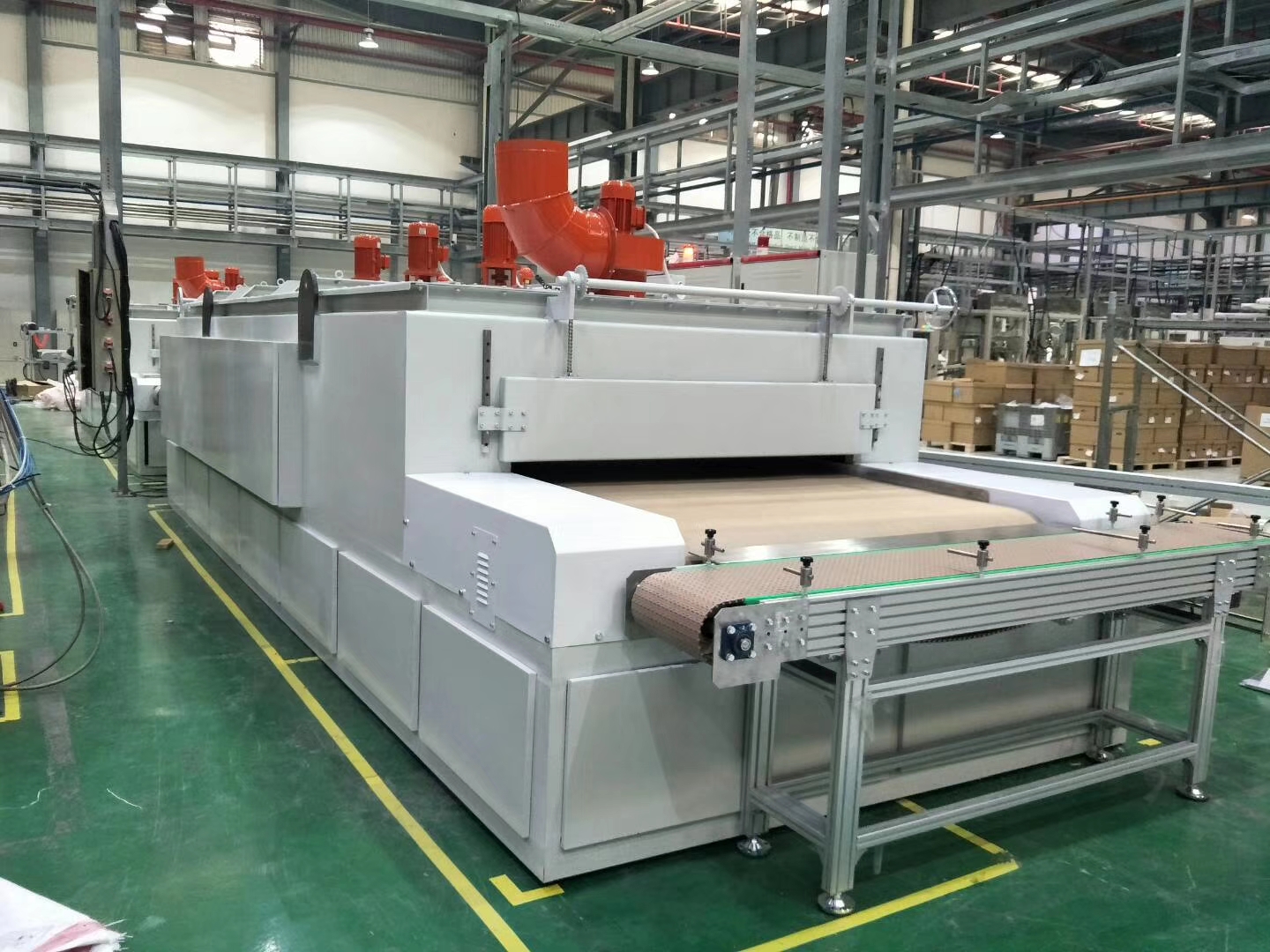

The design of a Paint Drying Oven is determined by many factors, such as
Total heating capacity
Shape of the object to be dried in the Paint Drying Oven
Type and thickness of insulation required in the Paint Drying Oven
Adequate exhaust arrangement for removing the solvent fumes of Paint Drying Oven
Proper arrangement for location of burners and heaters in the Paint Drying Oven to ensure uniform heating.
1. Technological process:
| Loading | Leveling | Drying(Pre-heating) | Curing | Cooling | unloading |
2. Main structure:
Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.
3. Main parameter : (Based on M10)
| Outside dimension | 28×2×1.9(L*W*H) | m |
| Inside dimension | 14×1.2×0.3 (L*W*H) | m |
| Max curing temperature | 500 | ℃ |
| Temperature uniformity control | ±2 | ℃ |
| Max load capacity/mesh-belt | 220 | kg/m² |
| Avg.gas consumption | 25 | m³/h |
| Max output | 9000 | kg/h |
| Belt convey speed | 0.2~0.8 | m/min |
|
|
