Three Basket Dip Spin Coating Machine Plant Low Ower Consumption Accurate Spray

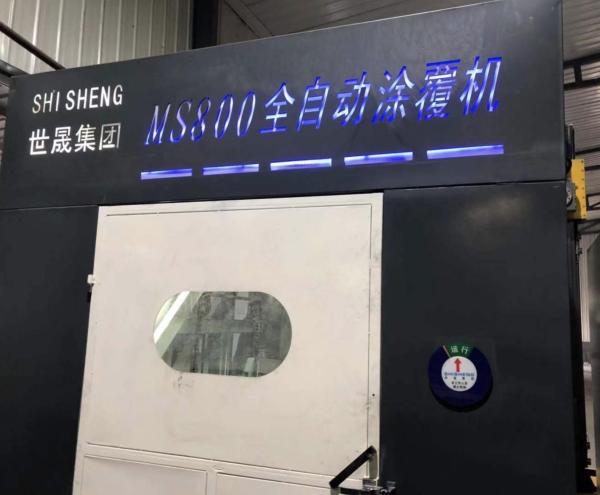

MS800+ is specially designed for the dip-spin coating. It consists of modules of loading, weighting, centrifuge, leveling and convey curing oven. Nanmat’s unique dip-spin coater is a total solution for the application of NanoMate® surface treatments. PLC controlled DSC-180C provides optimized dip-spin proceses, including tilting angle and rotating speed, to improve the issue of coating non-uniformity.

The dip-spin coater capacity is 30~60KG per batch, depending on the type and the size of fasteners. Typical processing time for the centrifuge is approximately 5 minutes at the spin speed of 400-500 RPM. The fasteners are then sent into the convey oven for curing at 180-200^oC for 15~20 minutes.

Not only used as the top coat process on Zinc-plating fasteners, MS800+ can be also used in dip-spin process of Zinc-rich coating, such as Geomate, Magni, Dorken and Dacro, to improve the non-uniformity and recess filling issues.

• Max Load Of Basket: 160 kg
• Max Spinning Speed:360 r/min
• Max tilting angle: 75°
• Max Capacity: 3500 kg/h
• Suitable Workpiece Weight: ≤1000 g
• Suitable Workpiece Length: ≤20 cm

Description:
Paint application : Suitable for any kinds of zinc flake paints and related top coat, seal, teflon coating.

Equipment main body:
Coating machine, weighing loading machine, conveyor distributor, operation control system.

Features:
1. Tiltable designed to ensure uniform coating of paint, no dead angle, no effusion.
2. More intelligent, high pass rate of production.
3. Manual loading function is available.
4. Can realize remote monitoring, it is convinent and safe to use.

1. Minimum Order Quantity: 1 Set
2. Packaging Details: 20 OT
3. Delivery Time: Three months after receipt of advance payment
4. Supply Ability:3 Set per Month
